Spezial-Kombi K2 6430/K2

Spezial-Kombi K2 6430/K2

Spezial-Kombi K2 6430/K2

Features

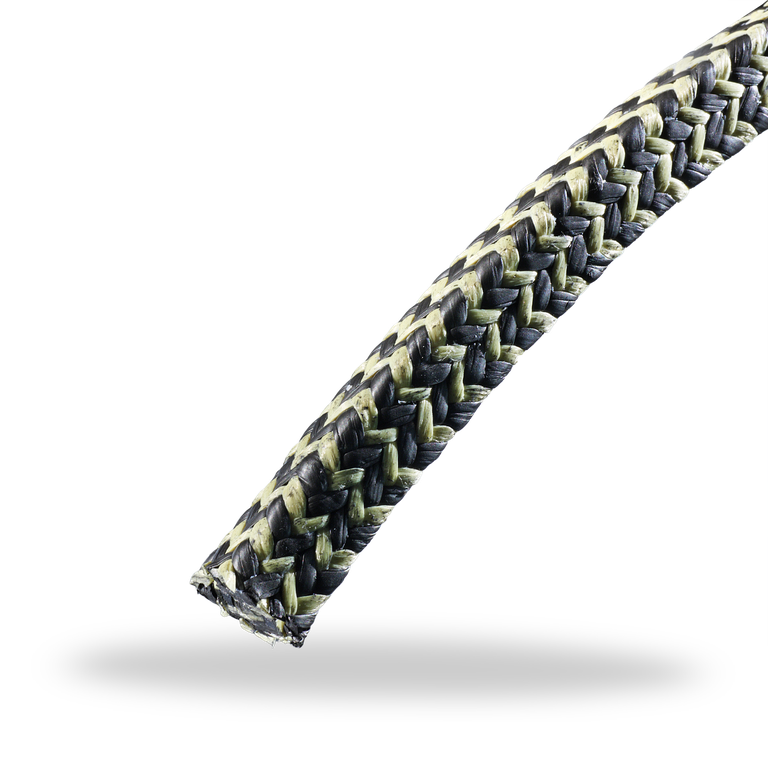

Spezial-Kombi K2 6430/K2 is a diagonally braided packing made from graphite-incorporated PTFE combined with a running surface reinforcement of endless aramid fibers (Kevlar).
The Spezial-Kombi K2 is a special packing for applications with high pressures and sliding velocities.

Advantages

  • Good sliding properties
  • Good heat conductivity
  • High strength

Operating range

Pumps
Pressure: p = 25 bar
Sliding velocity: vg = 20 m/s
Temperature
  • Continuous operation:
    t = -100 °C … +250 °C
  • Steam: tmax = +180 °C

Chemical resistance:
pH = 1 ... 13
Suitable for abrasive and sticky media.

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg
