Kombipack 6065

Kombipack 6065

Kombipack 6065

Features

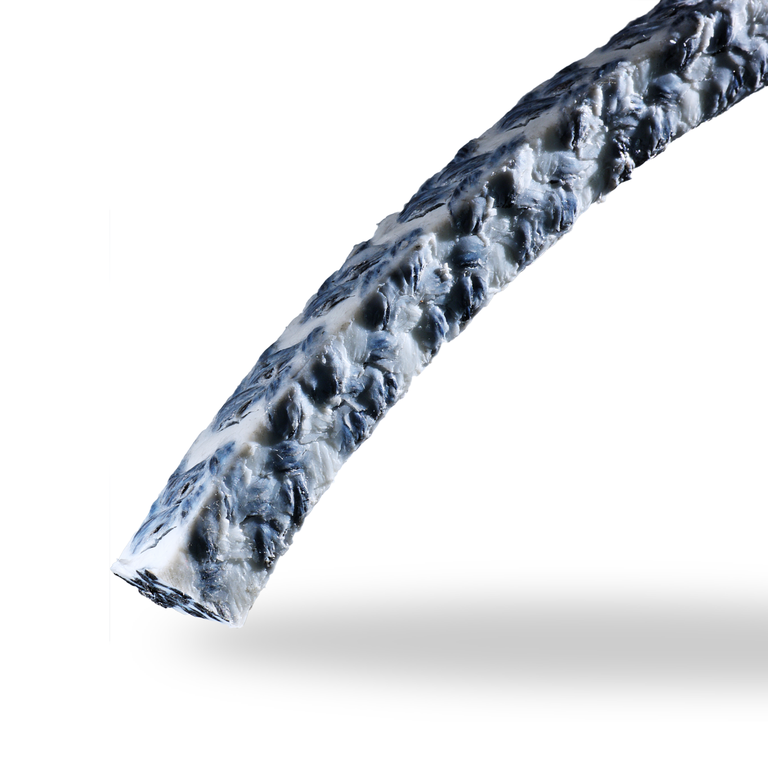

Kombipack 6065 is a packing made from an especially elastic combination of high quality carbon and PTFE yarns, diagonally brad with a special PTFE compound and impregnated with running-in lubricant. The packing is especially able to absorb shaft misalignment and radial stresses, for example in the chemical, paper and food industries.

Advantages

  • Very low friction coefficients
  • Very high elasticity
  • Best sliding properties
  • Low leakage rates
  • Long service life
  • Good heat dissipation
  • Can be used at high temperatures without cold flow

Operating range

Pumps
Pressure: p = 25 bar
Sliding velocity: vg = 20 m/s
Mixers, agitators, kneaders, filters
Pressure: p = 25 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation:
    t = -100 °C … +280 °C

Chemical resistance:
pH = 0 ... 14
Resistant alkalis, solvents, alcohols, ester ketones, oils, acids, hot water, brine, and ammonia.

Standards and approvals

  • FDA

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg
