Burasoft 6225/L

Burasoft 6225/L

Burasoft 6225/L

Features

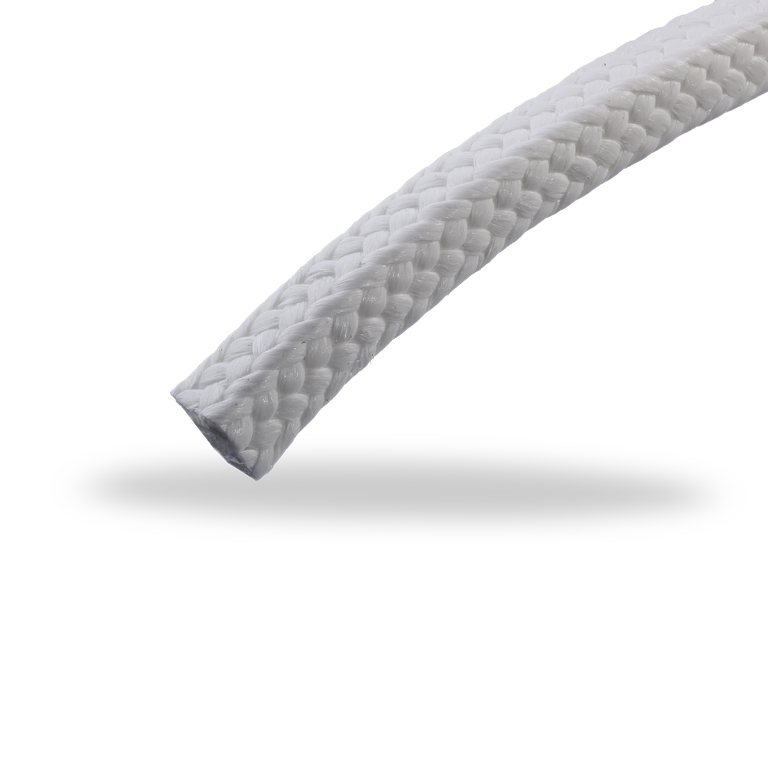

Burasoft 6225/L is a diagonally braided silicone oil-free PTFE packing with lubricant. The packing can be used universally in the chemical, pharmaceutical and food industries.

Advantages

  • Excellent emergency running properties
  • High structural strength
  • Good cross-sectional stability

Operating range

Pumps
Pressure: p = 10 bar
Sliding velocity: vg = 10 m/s
Valves
Pressure: p = 100 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation:
    t = -200 °C … +280 °C

Chemical resistance:
pH = 0 ... 14
Universal chemical resistance. Not suitable for use in abrasive media or in applications using hot water, hot steam or oxygen.

Standards and approvals

  • FDA

Variants

6225/LAK (braiding in AK-profile)

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg
