MFL85N

Purchase online

MFL85N

MFL85N
Purchase online
Item Part no.
DIN 24250		 Description

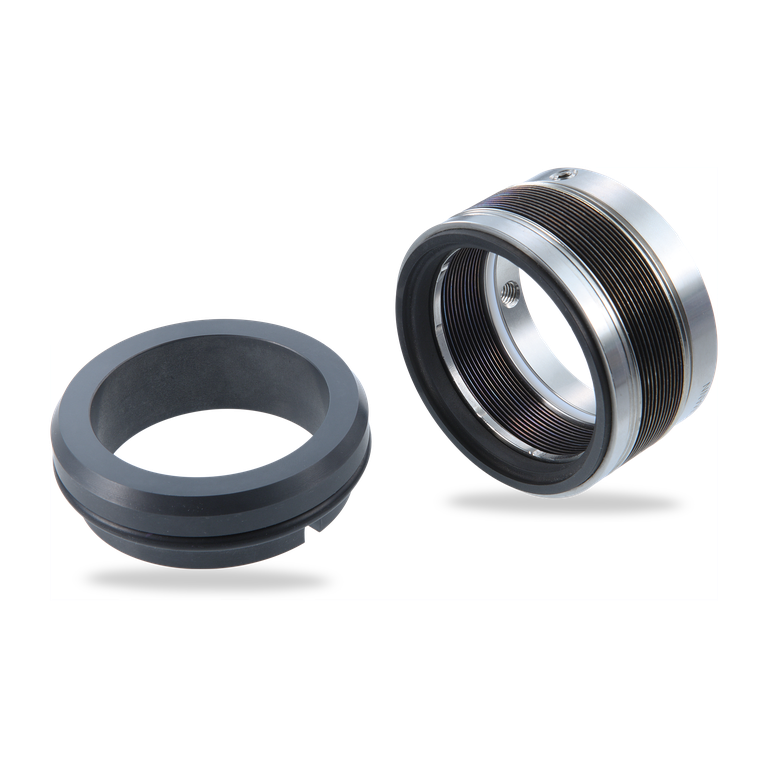

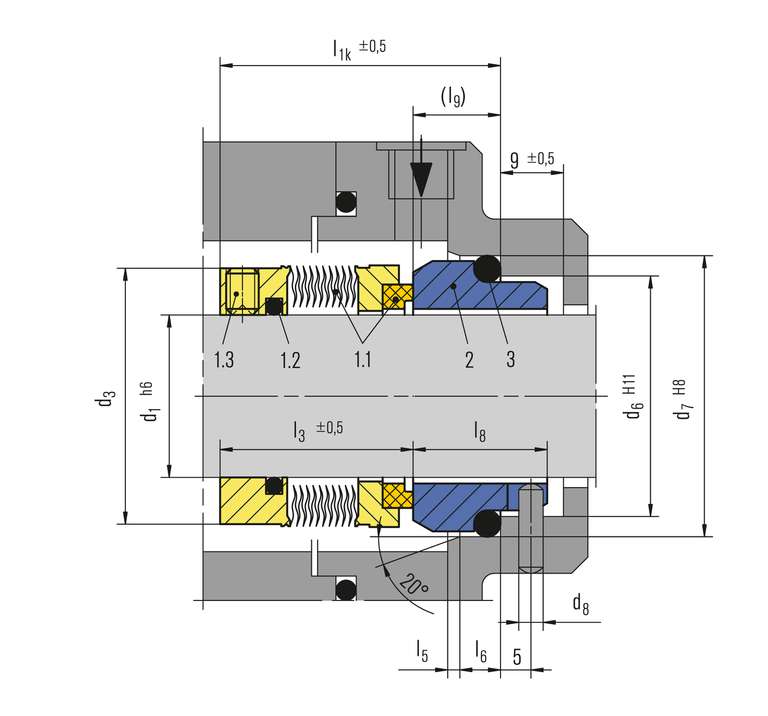

1.1 472/481 Seal face with bellows unit
1.2 412.1 O-Ring
1.3 904 Set screw
2 475 Seat (G9)
3 412.2 O-Ring

MFL85N

Features

  • For unstepped shafts
  • Single seal
  • Balanced
  • Independent of direction of rotation
  • Metal bellows rotating

Advantages

  • For extreme temperature ranges
  • No dynamically loaded O-Ring
  • Self cleaning effect
  • Short installation length possible
  • Pumping screw for highly viscous media available (dependent on direction of rotation).

Operating range

Shaft diameter:
d1 = 16 … 100 mm (0.63" … 4“)
Externally pressurized:
p1 = … 25 bar (363 PSI)
Internally pressurized:
p1 <120 °C (248 °F) 10 bar (145 PSI)
p1 <220 °C (428 °F) 5 bar (72 PSI)
Temperature: t = -40 °C … +220 °C
(-40 °F … 428) °F,
Stationary seat lock necessary.
Sliding velocity: vg = 20 m/s (66 ft/s)

Materials

Seal face: Carbon graphite antimony impregnated (A), Silicon carbide (Q12)
Seat: Silicon carbide (Q1)
Bellows: Inconel® 718 hardened (M6), Hastelloy® C-276 (M5)
Metal parts: CrNiMo steel (G), Duplex (G1), Hastelloy® C-4 (M)

Standards and approvals

  • EN 12756


Product variants

MFL90N
Shaft diameter:
d1 = 20 … 100 mm (0.79" … 4“)
Internally pressurized:
p1 = … 16 bar (232 PSI),
stationary seat lock necessary.
Externally pressurized:
p1 = 10 bar (145 PSI)
Temperature:
t = -40 °C … +220 °C (-40 °F … +428 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
MFL85P / MFL90P
Version with pumping ring. Dependent on direction of rotation. Can be retrofitted.
MFL85F

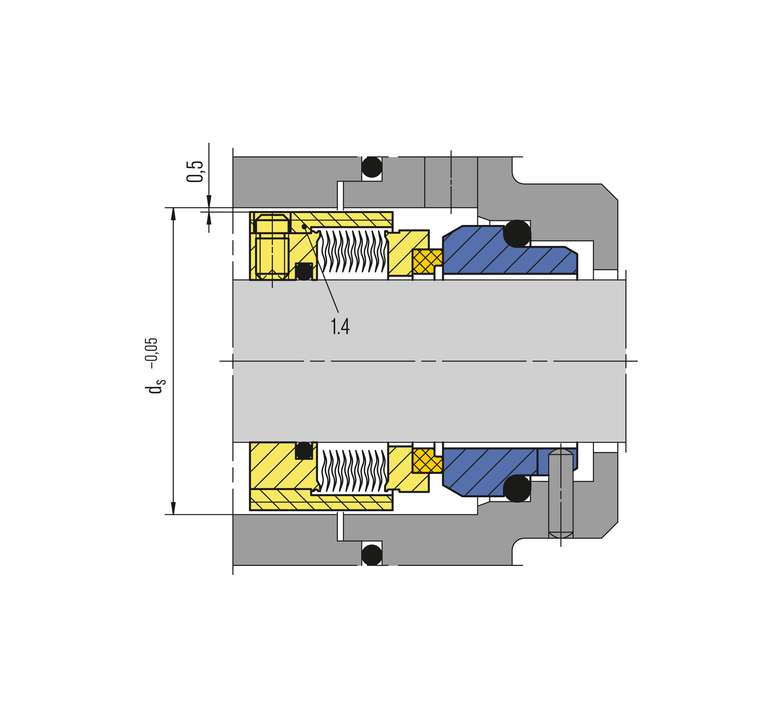

Dimensions, items and description as for MFL85N, but with pumping screw (item no. 1.4). Dependent on direction of rotation. The pumping screw can be retrofitted.

Similar products

LY9DSTT

LY9DSTT

  • API 682 Category 2 and 3, Type C, Arrangement 3 seal
  • Dual seal in face-to-face arrangement
  • Balanced
  • Cartridge unit
  • Stationary metal bellows
  • Shrink fitted seal rings and solid mating rings

Read more

LY9DZTT

LY9DZTT

  • API 682 Category 2 and 3, Type C, Arrangement 2 and 3 seal
  • Dual seal in face-to-back arrangement
  • Balanced
  • Cartridge unit
  • Stationary metal bellows
  • Shrink fitted seal rings and solid mating rings

Read more

LY9TC

LY9TC

  • API 682 Category 2 and 3, Type C, Arrangement 1 seal
  • Single seal
  • Balanced
  • Cartridge unit
  • Stationary metal bellows
  • Shrink fitted seal ring and solid mating ring

Read more

Contact

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.

Inquire now Discover reference projects
Back to the overview
