CB Clamshell
metal expansion joints

CB Clamshell
metal expansion joints

CB Clamshell<br/>
metal expansion joints

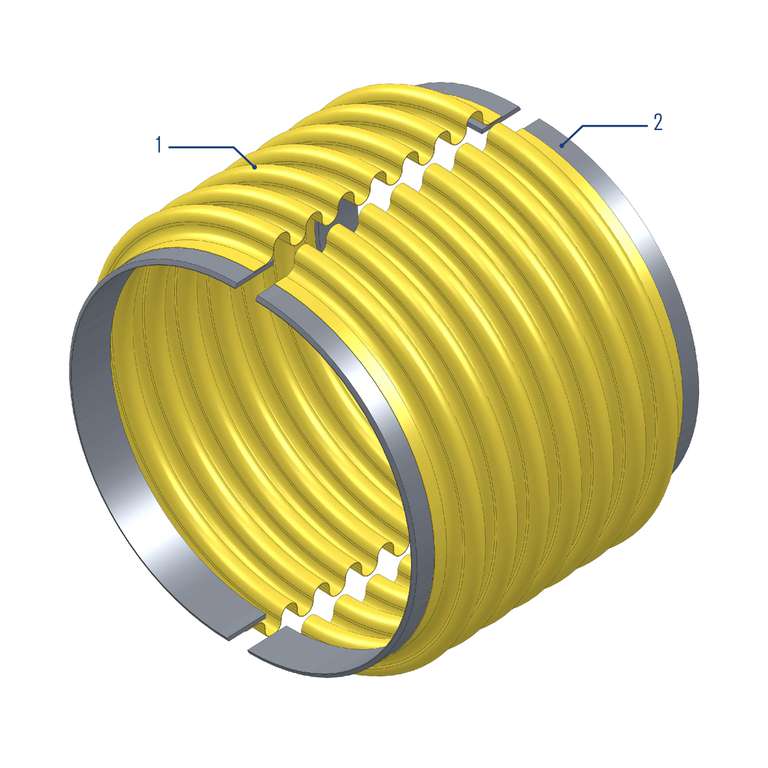

Typical CB clamshell expansion joint


Item Description
1 Clamshell bellows 1-ply
2 Weld end

CB Clamshell
metal expansion joints

Features

  • Bellows or expansion joints split into longitudinal segments for installation without opening pipework.
  • Temporary repair solution for damaged expansion joints.
  • Can handle axial, lateral and angular movements.
  • The permissible combination and magnitude of movements depends on the application and the existing expansion joint that is to be repaired.

Advantages

  • In non-critical failures, permits repairs to expansion joints without shutting the plant down.
  • Provides temporary expansion joint repair until a scheduled outage.
  • In critical failures, enables rapid restart after an emergency shutdown.
  • Can facilitate repair when access to the expansion joint is via confined spaces.

Operating range

Diameter: Up to 4,250 mm (170”)
Process temperature: Up to 900 °C (1,650 °F)
Pressure: Up to 80 bar (1,200 PSI)

Materials

  • Bellows material: SA240-304, SA240-304L, SA240-316, SA240-316L, SA240-321, Inconel® 625 LCF (low cycle fatigue) nickel alloy, Inconel® 800H, other materials on request.
  • Bellows basics: single ply, formed by punch mandrel, thin-wall. Cut into longitudinal segments once manufacture is complete. Ply thickness 0.7 mm (0.03”) ... 3.0 mm (0.12”).
  • Weld ends and/or rings: material selected to suit the application

Standards and approvals

  • B31.3 process piping
  • ASME Section VIII, Division 1, R (repair, unfired) pressure vessel certificate.
  • European Pressure Equipment Directive (PED) 97/23/CE
  • Expansion Joint Manufacturers Association (EJMA)
  • ISO 9001:2008

Functional description

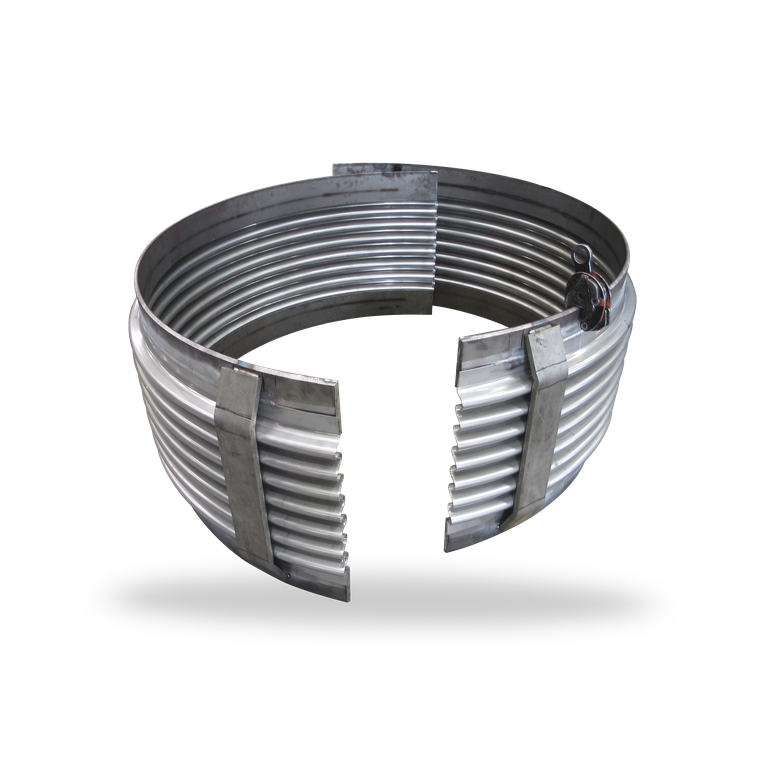

CB Clamshell expansion joints are cut into (most commonly two) longitudinal segments once their manufacture is complete. Because they have been cut, they can be installed around existing pipe with no need for the pipe itself to be cut or opened. Once the pieces are in place, they are welded together by expert welders, to create the whole expansion joint.

Notes

Quality control and testing options:
  • Full x-ray of bellows longitudinal seam weld before formation of convolutions.
  • Full dye penetrant test of bellows longitudinal seam weld inside and outside before and after forming of convolutions.
  • 100 % dye penetrant test of bellows attachment welds (if applicable). This would be done prior to the expansion joint being split into segments.
  • Impact testing of weld ends
  • Hardness test
  • Positive Material Identification


Service:
  • Expert clamshell bellows welders available to perform these highly-specialized welds.
  • All field welds can be 100 % dye penetrant tested.
  • Welding teams able to work at height and in confined spaces, provided safety requirements are met.
  • Experienced supervision by our field service personnel available for overall expansion joint repair guidance.
